How Does an AC Actuator Work in HVAC Damper Control Systems?

HVAC systems rely on precise airflow control to maintain indoor comfort and energy efficiency. An ac actuato plays a critical role in controlling dampers, regulating air volume, and optimizing building automation systems.

Understanding how an AC actuator works in HVAC damper control systems can help engineers and procurement managers choose the right solution.

Basic Working Principle

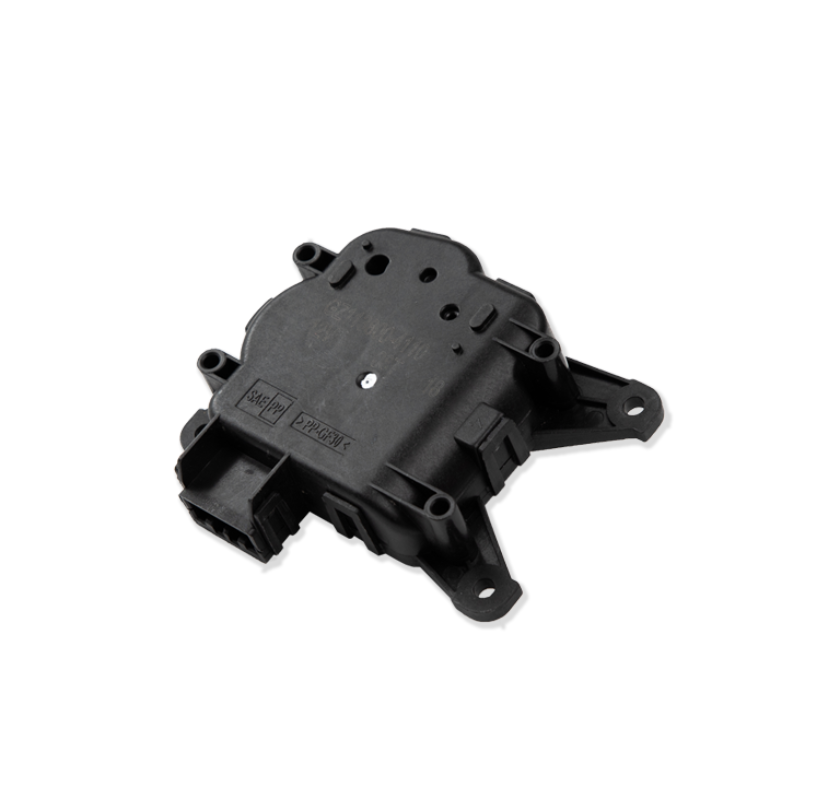

An ac actuato converts electrical energy into mechanical motion. When powered by AC voltage, the internal motor drives a gear mechanism that rotates the damper shaft to open or close airflow passages.

The actuator receives signals from thermostats, Building Management Systems (BMS), or PLC controllers. Based on temperature or airflow requirements, the actuator adjusts damper position accordingly.

On/Off vs Modulating Control in HVAC

There are two common control modes in HVAC applications. On/Off AC actuators open or close the damper completely and are suitable for simple ventilation systems. Modulating AC actuators respond to 0–10V or 4–20mA signals and adjust the damper proportionally, allowing precise airflow regulation and improved energy efficiency.

In modern commercial buildings, modulating ac actuato solutions are more widely adopted for better performance.

Torque and Sizing in Damper Applications

Selecting the correct torque depends on damper size, blade design, air pressure, and friction level. Oversized actuators waste energy, while undersized units fail to operate properly. Manufacturers usually provide torque calculation guidance based on Nm per square meter of damper area.

Energy Efficiency and Spring Return Function

In HVAC safety systems, spring return AC actuators are commonly used. When power is lost, the internal spring automatically returns the damper to a preset safe position (open or closed). This function is particularly important in smoke control and fire protection systems.

Energy-efficient ac actuato designs reduce standby power consumption and support green building standards.

Communication and Smart Integration

Modern HVAC systems require integration with building automation platforms. Advanced AC actuators support Modbus RTU, BACnet, and provide position feedback signals for real-time monitoring and centralized control.

An ac actuato is a key component in HVAC damper control systems, ensuring accurate airflow adjustment, improved comfort, lower energy costs, and enhanced system reliability.
