The Difference Between Blend Door Actuator And Mode Door Actuator

A modern car’s climate control system is a sophisticated combination of mechanical and electronic components designed to keep the cabin comfortable in all weather conditions. At the heart of this system are actuators, small devices that control airflow, temperature, and air distribution. Among these, the blend Door Actuator and mode door actuator are often misunderstood, yet they serve distinct and crucial roles within the HVAC system.

The blend door actuator is primarily responsible for regulating the mix of hot and cold air that enters the cabin. It controls the position of the blend door, which adjusts how much heated air from the engine passes through the HVAC system and mixes with cooled air from the air conditioning. When this actuator works properly, it ensures the temperature you select on the dashboard matches the actual air coming from the vents. A faulty blend door actuator can lead to inconsistent cabin temperatures, where the air might be too hot, too cold, or fluctuate unexpectedly. Common symptoms of a failing blend door actuator include uneven heating, difficulty maintaining set temperatures, and clicking noises from the dashboard. Diagnosing this problem often involves testing the actuator’s movement and electrical signals to determine if replacement is necessary.

On the other hand, the mode door actuator controls the direction of airflow within the cabin. While the blend door actuator regulates temperature, the mode door actuator determines whether the air exits from the dashboard vents, floor vents, or defrost vents. It plays a vital role in maintaining comfort and visibility, especially during cold or rainy conditions. For example, when a driver switches to defrost mode, the mode door actuator moves the airflow to the windshield vents to clear condensation. If this actuator fails, the air may come out of the wrong vents, reducing comfort and potentially compromising safety. Unlike the blend door actuator, mode door actuators focus on air distribution rather than temperature control.

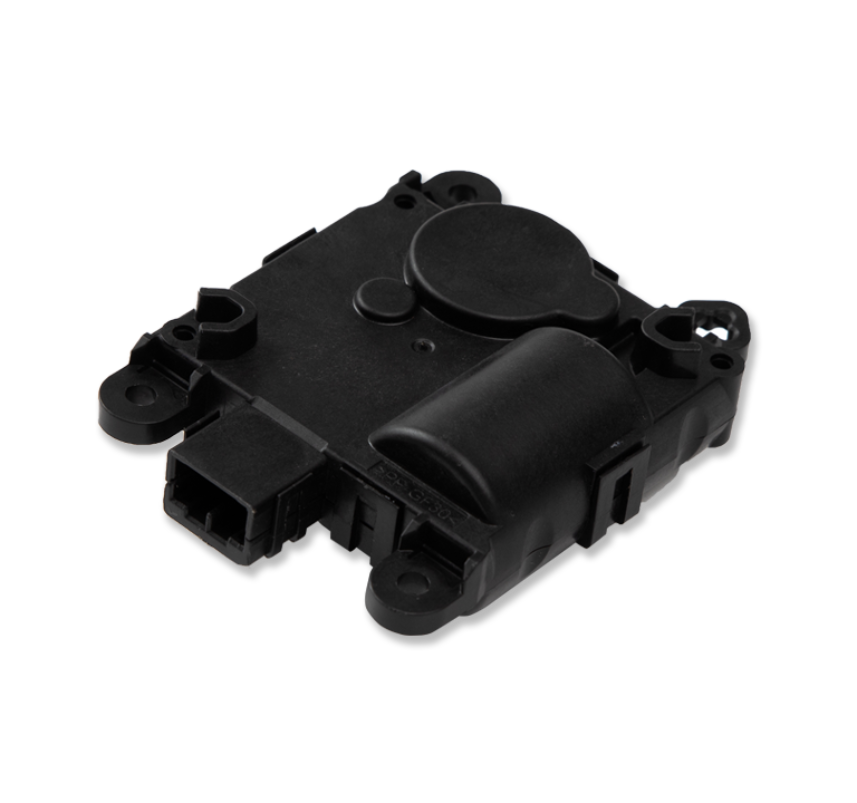

Both actuators are types of HVAC Actuators and are integral to the proper functioning of a vehicle’s climate system. They are typically small, electrically powered devices mounted inside the HVAC housing. Despite their size, a malfunction in either actuator can significantly impact passenger comfort. In some cases, multiple actuators in the system may fail simultaneously due to wear and tear, dust accumulation, or electrical issues, making it important to understand each actuator’s role for effective troubleshooting.

Maintenance and replacement of these actuators are relatively straightforward compared to other HVAC components. The heater control actuator, for instance, often works alongside the blend door actuator to regulate cabin heating. Regular inspections, listening for unusual noises, and checking the responsiveness of your climate control system can help identify early signs of actuator problems. Ignoring small issues may lead to larger failures, such as a completely unresponsive air conditioning system or uneven airflow that affects passenger comfort.

Another difference between the blend door actuator and mode door actuator lies in their complexity and range of motion. Blend door actuators often require precise movement to accurately mix hot and cold air, which makes them slightly more sensitive to mechanical or electrical failure. Mode door actuators, while simpler in function, are equally essential because they ensure air reaches the correct vents. Both types, however, are susceptible to the same common issues, including motor burnout, gear wear, and electrical connection problems.

Understanding the distinction between these actuators is valuable not only for car owners but also for mechanics and HVAC component suppliers. For drivers, recognizing the symptoms of a faulty blend door or mode door actuator can prevent misdiagnoses and unnecessary repairs. For suppliers, highlighting the quality and reliability of actuators, whether blend door actuator, heater control actuator, or other HVAC Actuators, is critical in the competitive automotive parts market. High-quality actuators ensure longevity, consistent performance, and customer satisfaction.

In conclusion, the blend door actuator and mode door actuator serve complementary but distinct roles within a vehicle’s climate control system. The blend door actuator regulates temperature by mixing hot and cold air, while the mode door actuator controls the direction of airflow. Both are types of HVAC Actuators and often work alongside the heater control actuator to maintain a comfortable cabin environment. Proper understanding, regular maintenance, and timely replacement of these actuators are essential for a functional and efficient car AC system. Whether you are a car owner troubleshooting irregular temperatures or a supplier looking to provide reliable HVAC components, knowing the difference between blend door and mode door actuators is key to optimizing vehicle climate control.
